Medi-Vu   MonoLite

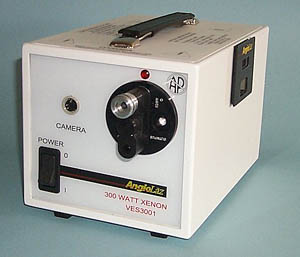

VES 3001	300-watt xenon Monolite with camera and VCR capability	$5,495
VES 3001/N	VES3001 with VES1ma/15	$6,995
ACCESSORIES
LB3000XB	Spare 300-watt xenon light module	$850
RAS-31LT	Floor Stand	$495
VES1MA/15	Camera with endoscope coupler	$1,995

FEATURE	BENEFIT
300 Watt Xenon Bulb with Infrared Filtering System, Guaranteed for 1,000 hours.	High-intensity daylight bright white light with minimal heat. Infrequent bulb outage.
Quick-Change Recyclable Lamp Module.	Lamp can be changed in less than 30 seconds. Return rebate program saves money.
7" x 7.5" x 10.7" (18 x 19 x 27 cm) physical size, 11.7 lbs.	Compact design takes less space and is lighter to move than most competitive units.
Rear-vented Cooling Design with Whisper Quiet Fan System.	Allows more flexible equipment placement, channels airflow to rear of unit, and reduces noise.
Pre-wired Video Connections Expensive option on most competitive units.	Enables use of endoscopic or headset mounted camera.
Built-in Handle.	Easy to relocate or move between areas.
Active Port Indicator Light.	Visual confirmation that light source is working.
Full-Range Light Intensity Control.	Provides infinite light adjustment within range to support different surgical applications.
Rotating Light Cable Connection Turret for ACMI, Olympus, Storz, and Wolf/Dyonics light cables Note: Pilling and Designs for Vision also available.	Reduces the number of light sources in OR and enables you to attach any headlamp, instrument, or endoscope.
Built-in Digital Lamp Hour Meter.	Monitors bulb usage and provides indication of remaining bulb life.

ACCESSORIES:

Floorstand: Mobile, tip-resistant stand with easy-roll widetrac locking casters, complete with unique EZ-mount slide bracket for mounting illuminator, and convenient storage of two headlamps. Brushed aluminum finish with no-scuff base. Product Number RAS-31LT.

300 Watt Xenon Spare Lamp/Cartridge: Quick-change module includes bulb (AngioLaz pacesetting guarantee warrants bulb for 1,000 hours) and built-in digital lamp age meter. Product Number LB3000Xb.

Video camera: Plugs directly into illuminator. Unit equipped with "B" (DIN) style optical coupler. The unique self-contained camera with Automatic Gain Control (AGC) and Electronic Shutter Design provides superb color image. Camera is soakable for cold disinfection, can be shrouded with disinfectant sleeve system, or Sterrad or sterris processed. Note: Just attach a monitor to the illuminator back (plug provided) and you've got a video system. Product Number VES1MA/15

SPECIFICATIONS
Lamp
	Type: 300 Watt Xenon
	Bulb Warranty: 1,000 hours
Light Source
	Dimensions: 7"H x 7.5"W x 10.7"D (18 x 19 x 27 cm)
	Weight: 11.7 lbs.
Power
	Requirements: USA 120V 50/60 HZ, Export 220-240V 50/60 HZ
	Consumption: USA and Export 720 watts maximum
	Circuit Protection: USA 6 amps, Export 3 amps
	Classification: Type B, Hospital grade cord and plug
	Safety Compliance: Meets UL2601-1 standard
Video Connections
	1-Y/C OUT and 1-Composite Video Out
Finish
	Painted and anodized aluminum
For more information, download our pdfs BiLite / MonoLite page 1 BiLite / MonoLite page 2
