Inspecta-Vu   PV-1

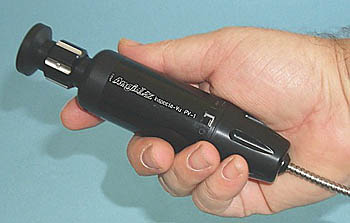

The PV-1 is a complete fiber optic borescope system in a small easily to hold package. It contains a bright rechargeable battery operated illuminator which will function for 1 hour on a single charge.

FEATURES INCLUDE:
Shaft:
	1/8" (3.2 mm)
	Shaft Length: 30" (includes strain relief of 7")
	Shaft construction nylon -
	Shaft end is sealed. May be damaged by some solvents.
	Bend Radius of 2"
	Field of view 50 degrees
	Direction of view 0 degrees

Batteries:
	Rechargeable nicad
	1 hour operation on a charge
	Charge cycle 14 hours
	Can be operated with AC charger supplied when batteries are discharged.

Lamp:
	Replaceable tungsten halogen
	Special optical coupling system
	Easily changed from the bottom

Charger / Power supplies for use with:
	North American standard connection, US, Mexico, Canada
	Continental European standard
	UK Standard three prong
	Australian Standard



The PV-1 is supplied in a durable plastic foam lined carrying case which holds the the PV-1, its charger / power supply, and two extra lamps.

The PV, comes with two guide tubes to allow placement of the PV-1 imaging tip. For most applications these guide tubes are easier to use than scopes with articulation systems which require considerable skill to operate. The guide tube kit consists of 2 - 12" (30 cm) tubes which are 3/16" (5 mm) diameter. Each has a locking handles to position the scope where you want it. Features: Straight view 50 degree view

For more information about this product, download PV-1info.pdf
For specifications about this product, download PV-1specs.pdf
